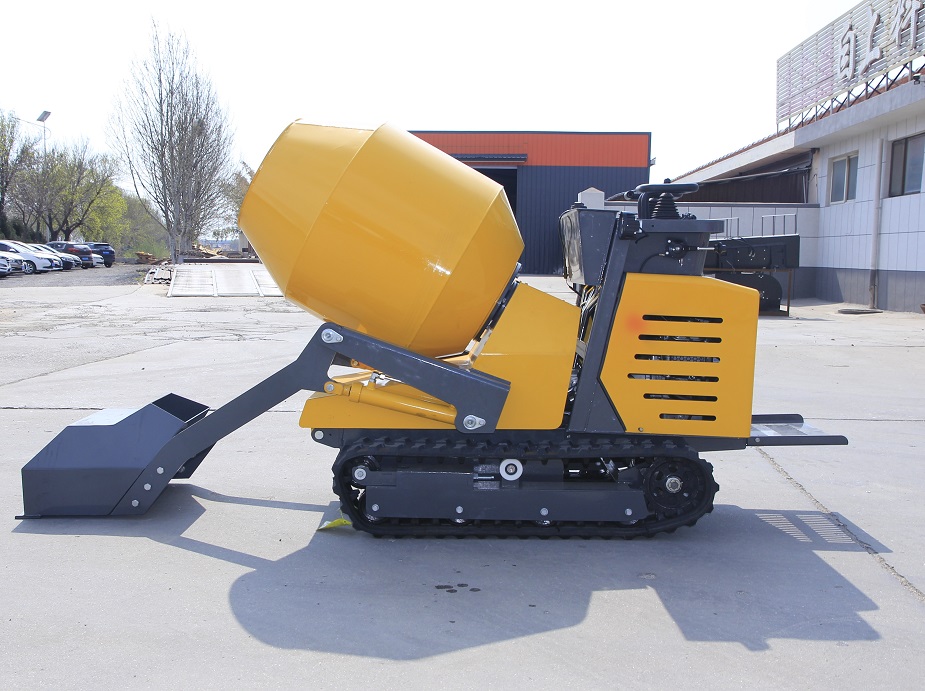

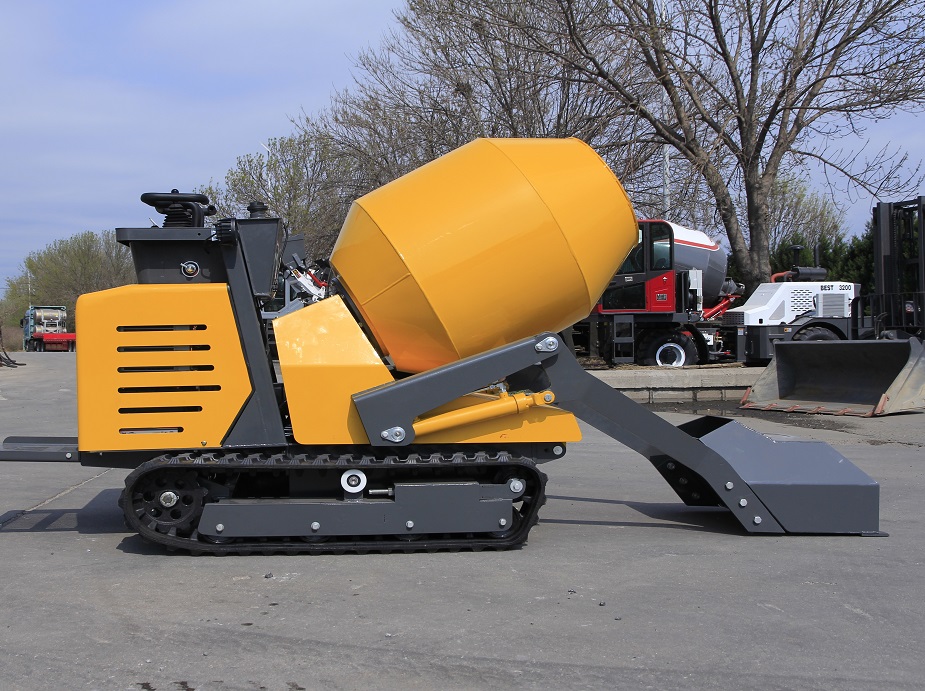

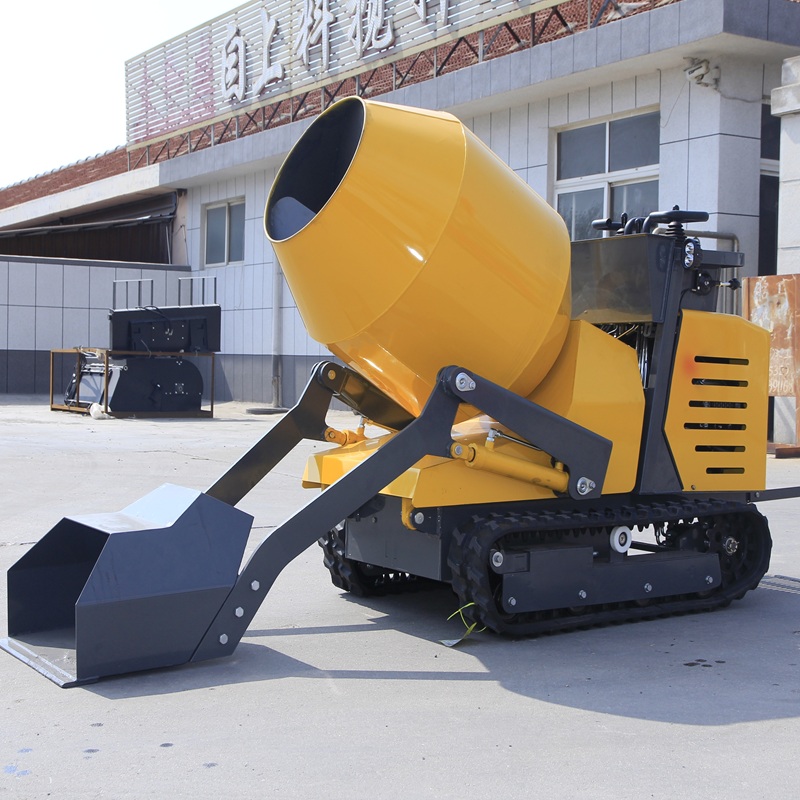

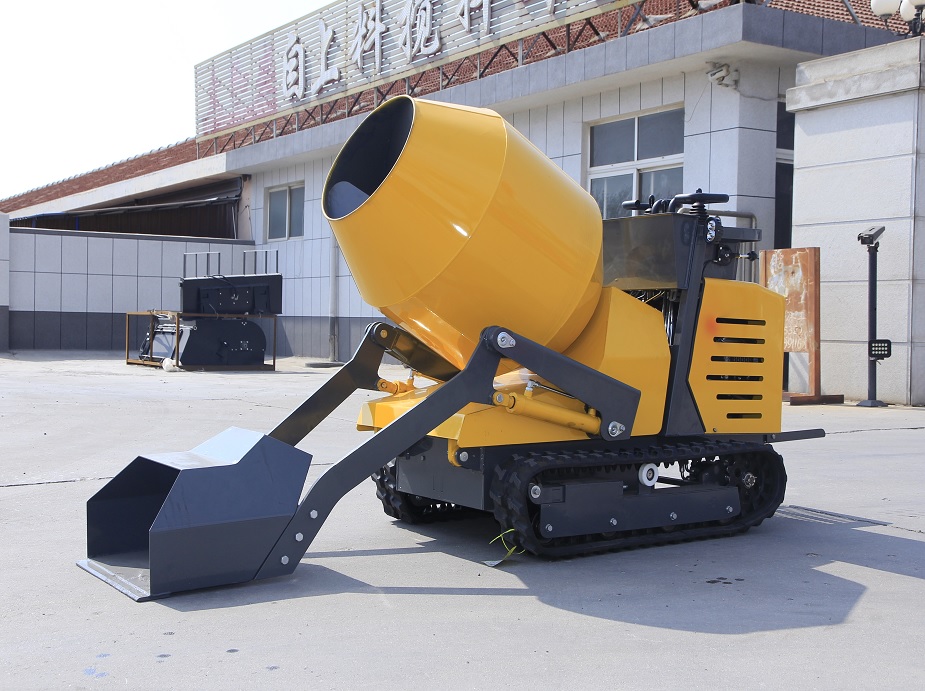

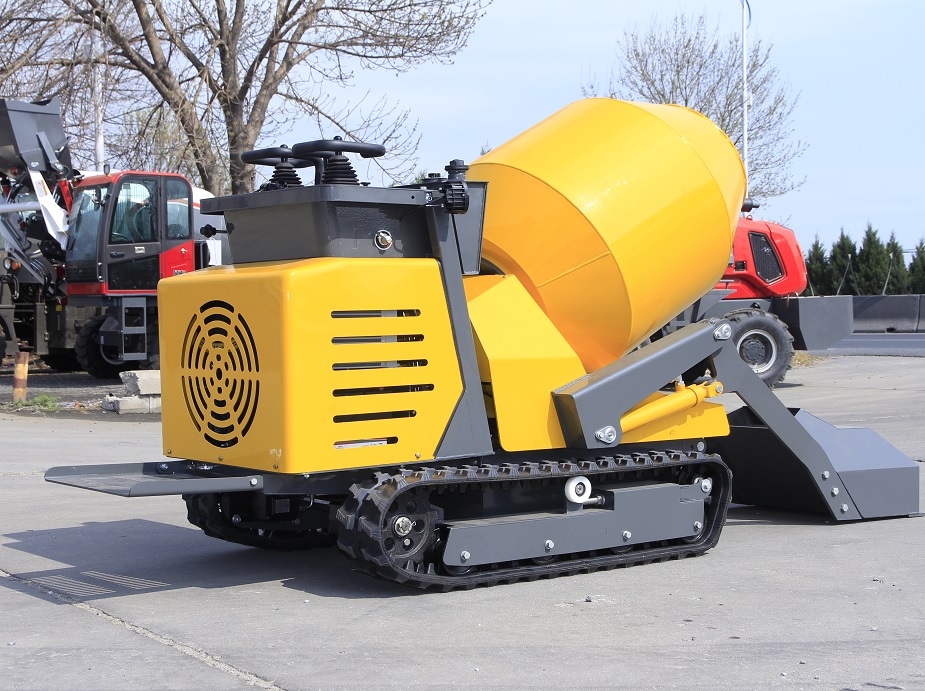

This compact tracked self-loading concrete mixer is designed for efficient, flexible, and powerful performance in narrow or complex job sites. Equipped with a durable rubber track system, it ensures excellent mobility over rough terrain, making it ideal for mountain roads, tunnels, and small-scale construction areas. The front-mounted loading bucket automatically feeds materials into the drum, saving labor and time. With its robust mixing drum, this machine delivers consistent, high-quality mixes for concrete, mortar, and other materials.
Phone:
+86-15939037000Email:
wenqiang@manxingim.com
This concrete mixer is equipped with heavy-duty rubber tracks, providing excellent off-road performance. It easily handles rugged construction sites, mountain roads, and narrow tunnels where wheeled vehicles can't go.
Integrated with a hydraulic loading bucket, this machine allows one-person operation. The self-loading system saves labor and speeds up the feeding process for sand, gravel, and cement.
Powered by a robust diesel engine, it offers high torque and stability, ensuring efficient and uninterrupted concrete mixing even in remote areas without electricity.
Its compact size and user-friendly controls make it perfect for small-scale construction projects, tunnel works, urban renovations, and farming applications.
This crawler self-loading concrete mixer is a compact, all-in-one solution that combines mobility, efficiency, and durability. It's ideal for narrow job sites, tunnel construction, indoor foundations, and remote areas without power supply—helping users reduce labor costs and improve on-site productivity.
| Parameter | Model 1 | Parameter | Model 2 |
| Machine Weight (Kg) | 1000 | Machine Weight (Kg) | 800 |
| Total Volume (L) | 500 | Maximum Payload (Kg) | 800 |
| Concrete Per Batch (L) | 320 | Fuel tank volume (L) | 20 |
| Engine Brand - | Briggs&Stratton | - | Briggs&Stratton |
| Engine Model - | 3864 | - | 3864 |
| Rated Speed (rpm) | 3600 | - | 3600 |
| Displacement (cc) | 627 | - | 627 |
| Rated Power (HP) | 23 | - | 23 |
| Walking Speed (km/h) | 0 - 6 | - | 0 - 6 |
| Minimum Radius of Turn (mm) | 1880 | - | 1880 |
| Ground Clearance (mm) | 170 | - | 170 |
| Climbing Ability ( ° ) | 30 | - | 30 |
| Hydraulic Tank Capacity ( L ) | 25 | - | 25 |
| Hydraulic Oil - | 46# hydraulic oil | - | 46# hydraulic oil |
| Bucket Capacity (m³) | 0.1 | - | 0.1 |
| Length×Width×Height (mm) | 2930×1100×1530 | - | 2780×1100×1350 |
